AT 8035

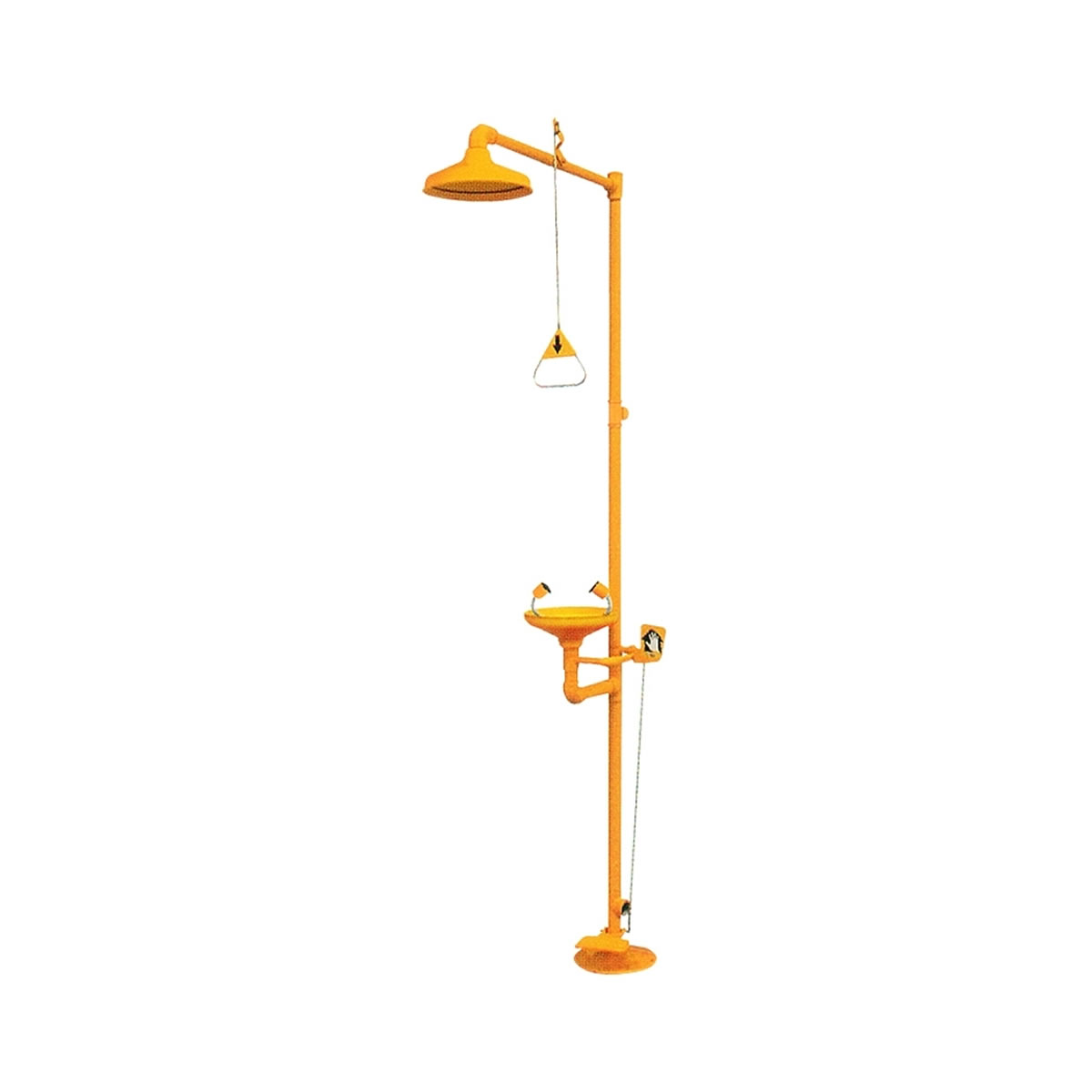

Floor Mounted Combination Unit of Drench Shower & Eyewash with ABS Plastic Bowls and come with Foot Pedal
Category:

Description

  • Shower & Eyewash Bowl : 280mm (11″) bowl is injection moulded in chemical resistant ABS bright yellow colour
  • Control Valve : 1 1/4″ fast-action stainless steel ball valve is used for the shower assembly with the stainless steel pull rod. 1/2″ fast-action stainless steel ball valve is used for the eyewash assembly with the stainless steel push plate
  • Pedestal : 250mm (10″) aluminium pedestal with 3 mounting holes for 9mm bolts. Pedestal is brightly epoxy powder coated in yellow
  • Pipe & Fittings : 1 1/4″ stainless steel pipe epoxy powder coated to bright safety yellow colour
  • Pipe Threads : Pipe threads in accordance to BS supplied as standards. NPT available upon request
  • Signage : Drench Shower and Eyewash
  • Waste : 1 1/4″ IPS
  • Water Supply : 1 1/4″ IPS
  • Compliance : ANSI Z358.1-2004

Note : Installation and piping not included

Order now

To make your order, please contact us at  info@polyscientific.com.my or call us at +6 06 3350 690
