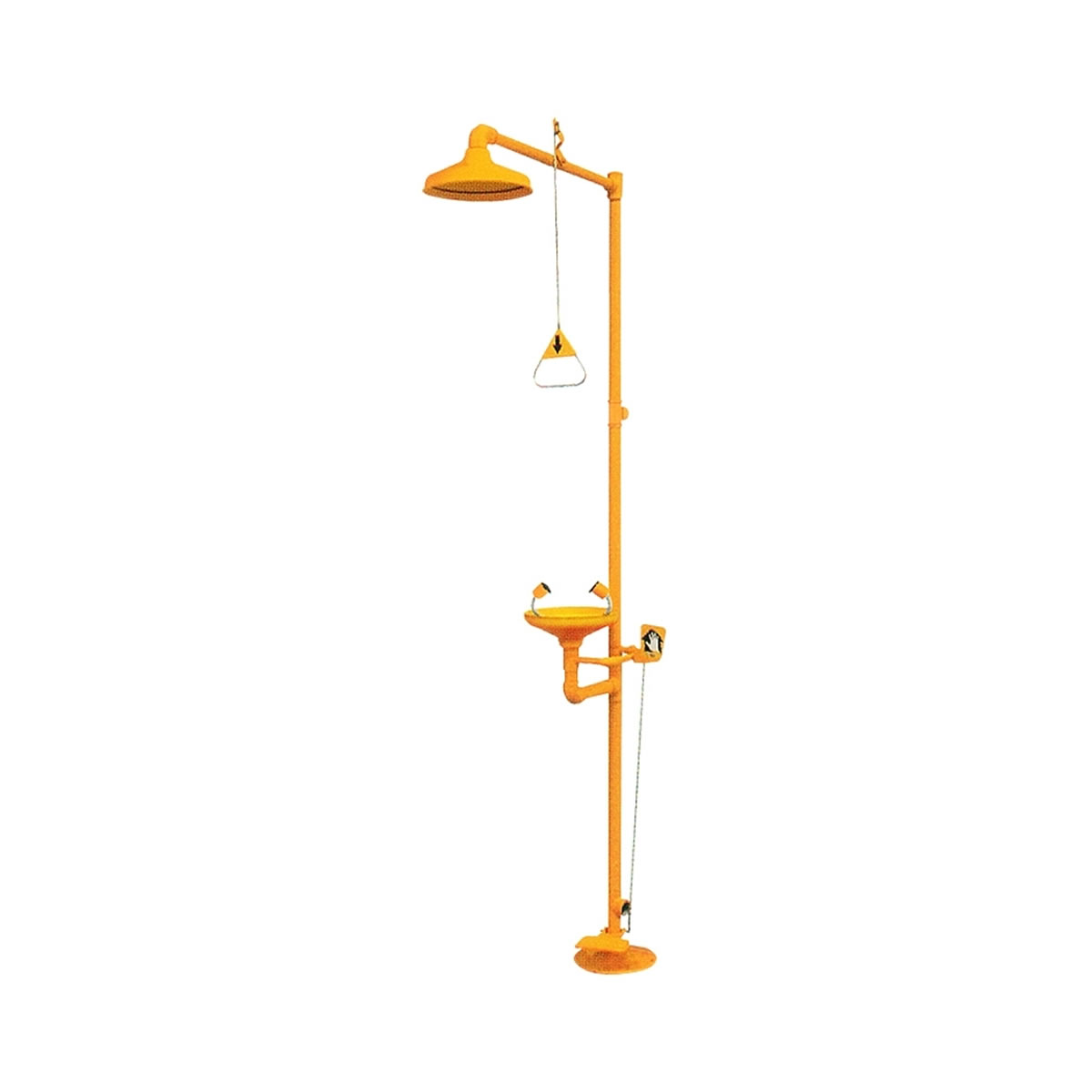

AT 8035

      SHOWER & EYEWASH BOWL

• 280mm (11″) ABS bowl

      EYEWASH ASSEMBLY

• Chemical resistant ABS and stainless steel spray head in bright yellow
• Soft-flow and instant open protective cover
• Automatic pressure compensating valve
• Build-in particle filter

      CONTROL VALVE

• 1” fast-action stainless steel ball valve is used for the shower assembly with the stainless steel pull rod. 1/2” fast- action stainless steel ball valve is used for the eyewash assembly with the stainless steel push plate.

      PEDESTAL

• 250mm (10”) aluminium pedestal with 3 mounting holes for 9mm bolts. Pedestal is brightly epoxy powder coated in yellow

      PIPE & FITTINGS

• 1′′ stainless steel powder coated to bright safety yellow colour

      WASTE

• 1′′ IPS

      WATER SUPPLY

• 1′′ IPS

      SIGNAGE

• Drench Shower and Eyewash

       CERTIFICATION

• ANSI/ISEA Z358.1-2014 Standard
