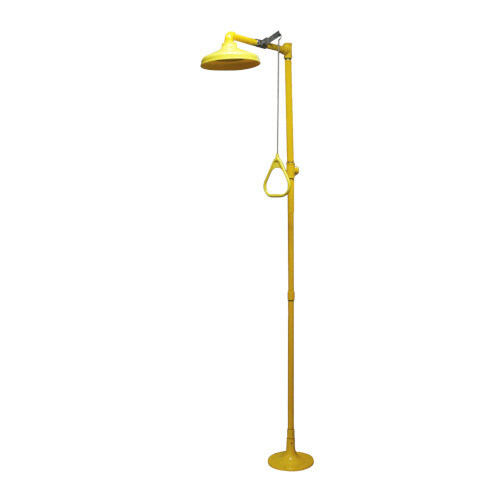

AT 8029G

Description

      SHOWER

• 280mm (11″) ABS bowl is injection moulded in chemical resistant bright yellow colour

      CONTROL VALVE

• 1” stainless steel fast-action ball valve is operated by a downward pull on the triangle handle of the stainless steel rod. Control valve will remain open until manually closed by pushing the rod upwards.

      PEDESTAL

• 250mm (10”) aluminium pedestal with 3 mounting holes for 9mm bolts. Pedestal is brightly epoxy powder coated in yellow.

      PIPE & FITTINGS

• 1′′ galvanised iron pipe epoxy powder coated to bright safety yellow colour

      WASTE

• 1′′ IPS

      WATER SUPPLY

• 1′′ IPS

      SIGNAGE

• Drench Shower

      CERTIFICATION

• ANSI/ISEA Z358.1-2014 Standard

      Note : Installation and piping not included
